Solved CPS2/CPS3 Kick-Harness Jamma Adapter

[xMasterPx]

Just trying to gauge which is the correct way to connect this CPS2/CPS3 Adapter I acquired from Japan-arcade eBay seller to Jamma edge connector as I don’t want to ruin my CPS3 board.



Any help would be appreciated identifying the correct position.

Thanks
Daz



[thegreathopper]

Kick harness does not connect to the Jamma connector usually, the way it’s designed to work is buttons 4,5,6 connect directly to a CPS2 or 3 board.

You need to check what your kick buttons are connected too, is that a cab or a supergun you are connecting the CPS3 to?



[xMasterPx]

Kick harness does not connect to the Jamma connector usually, the way it’s designed to work is buttons 4,5,6 connect directly to a CPS2 or 3 board.

You need to check what your kick buttons are connected too, is that a cab or a supergun you are connecting the CPS3 to?

Thanks for the reply and your right the normal way would be connecting to CPS2/CPS3 with female quick disconnect buttons going to kick buttons.

However I believe this method wires the 4, 5 & 6 buttons to unused pins on Jamma edge connector.

I’m connecting this Ok Baby Jamma cabinet just cannot work out which is correct way? 😅



[xMasterPx]

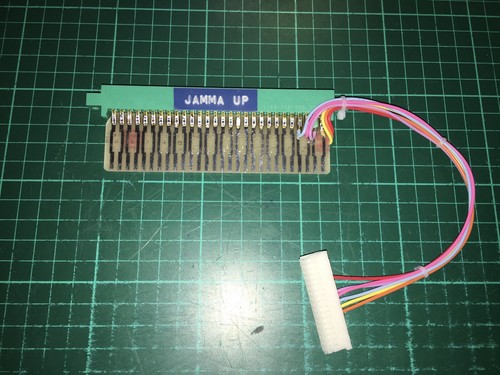

Oh this link to the adapter I bought:

6 Button Adapter Through Jamma Cabinet To Capcom CPS2 / CPS3 Motherboard | eBay

Find many great new & used options and get the best deals for 6 Button Adapter Through Jamma Cabinet To Capcom CPS2 / CPS3 Motherboard at the best online prices at eBay! Free delivery for many products.

www.ebay.co.uk



[favouredson]

You will need to modify your wiring to use that adaptor.
Your loom has ground connected to pins 27 & e which the adaptor is using for two of the kick buttons. You will then have two permanently grounded kick buttons.



[xMasterPx]

Thanks for the input and confirmed this device will not work with out modification like you mentioned.

I will look to obtain the original kick-harness as intended.
