Sega enduro racer fuses

[Body pop]

Hi guys
Can anyone tell me where to get the fuses for sega enduro racer
it says 32b
Bussa c4
I think on it



[SassMate]

Does it have a rating in amps on the silver cap ends or the pcb silk screen?



[Body pop]

That’s all I can see on it
Though though my peepers aren’t what they used to be 👀



[Bods]

Bussmann maybe?

Does manual say anything



[Venom]

nothing exciting https://www.arcade-museum.com/manuals-videogames/E/Enduro-Racer-Upright.pdf



[Body pop]

Bussmann maybe?

Does manual say anything

I can’t see anything in manual



[Body pop]

nothing exciting https://www.arcade-museum.com/manuals-videogames/E/Enduro-Racer-Upright.pdf

Thanks ,I can’t see the fuses anywhere on it
I’d assume this page they should be on ? Probably the same as outrun fuses ?



[big10p]

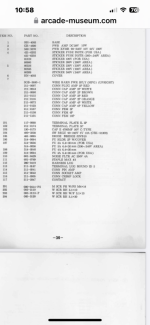

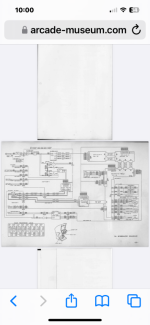

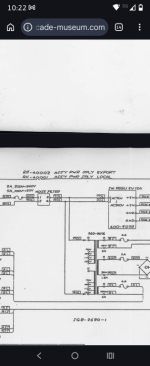

Fuses are listed on page 36 and shown here on the schem...



[Body pop]

Thank you .so for USA cab
It’s 3a 4a and 5a ?
And they would be 100-120v ?
Where’s best to get these .was hoping someone sold them somewhere as a set .
Only one of them has blown for monitor but probably best to get them all



[big10p]

If it's a monitor fuse I'm guessing it's a slow blow fuse, but the manual doesn't seem to say, specifically. Does the old fuse have a T on it (for Time Delay)?

I got these a while back and they seem to the job.

https://amzn.eu/d/04h2At1X



[Body pop]

Yes it says 32b olt



[Body pop]

https://amzn.eu/d/04h2At1X

Thanks I’ll get those ordered 👍



[Bods]

Try Space Harrier Upright or Sitdown manuals as same hardware
