Don't understand what you mean about the GND pins. Green on slice means GND so pin 8 on both look fine to me. And why do you think pins 6and 7 might be shorted?Pin 7 is the output for pin 6.They look shot. But your GND pins don't seem right (to me) either ... unless maybe pins 6 and 7 are internally shorted ... check those GND pins with your oscilloscope to make sure those readings are right.
Sorry had to delete first pics as I had selected the wrong chip.He's edited the post and added more pictures now I think. and started talking about LS174;s I was looking at the 2 attachment pictures for the LS74;s which have signals on the GND pins
Thanks for tracing that 1 for meYeah it's pin 6 on that 174 and it should buzz to pin 13 of the 2114 at 6B, worth a check I'd say.

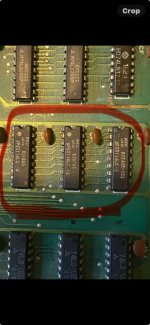

Is that on all the three 2114’s ?schematics say you should have a signal on A8 (pin16) of your 2114's coming from the LS157 (pin9) at 6D
yes the address lines of those three 2114 rams are all connectedIs that on all the three 2114’s ?
