Sega analogue stick & monkey ball
- Thread starter Retroman839
- Start date
Retroman839
Senior Member
I’ll. try to connect monkey ball analogue pcb from arcade art shop ( olly )
Tonight and report back.
Yeh them guys on arcade museum couldn’t seem to sort it out!
I’m still waiting he did send the 3d print file to me though.
I was just with an original monkey ball
Today funnily enough .. got me wanting to get my monkey on!
Tonight and report back.
Yeh them guys on arcade museum couldn’t seem to sort it out!
I’m still waiting he did send the 3d print file to me though.
I was just with an original monkey ball
Today funnily enough .. got me wanting to get my monkey on!
Retroman839
Senior Member

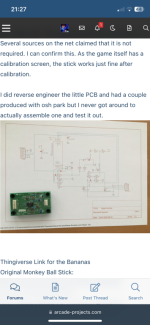

This was my friend when it came to connecting up the pcb

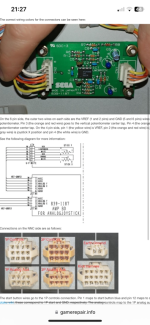

And this
Still not totally convinced I have it wired
Correctly yet ..
But it does work better with the pcb
And this
Still not totally convinced I have it wired
Correctly yet ..
But it does work better with the pcb
Monstermug
Active member
How much percentage better?
Retroman839
Senior Member
Just playing again without
Pcb to get a feel of difference.
Got an issue at moment
Can’t seem to get both x & y working
Might need another analouge stick
Last edited:
Retroman839
Senior Member
Amp is a doubler
It’s double velocity
Will do a vid once I have it working correctly …
Stick Is fine without amp..
But I’m having some issues with amp using wago’s for connections maybe to big a contact trying directly wiring
Retroman839
Senior Member
I might have my grounds and analogue
Even with the added velocity on in game options .
The amp board does work im only testing with the sega standerd analogue stick .. not dedicated monkey ball and gundam sticks which I think have diffrent pots
yeh without amp board analogue stick is just slow ..
Even with the added velocity on in game options .
The amp board does work im only testing with the sega standerd analogue stick .. not dedicated monkey ball and gundam sticks which I think have diffrent pots
I'd be curious how that stick fares in the later levels. I'll have both sticks but Gundam stick seems like the obvious choice. From what I've read the Sega analog sticks are usable but struggle heavy on the more accurate stages.
Retroman839
Senior Member
I finished today...
Thanks guys :D Finding Semeitsu LS-29s is almost impossible, so I used common taito spinners. Although I was lucky enough to find genuine taito optical coupler PCBs, the Happ or Wico ones work fine too. As for the pinout, assuming this pin order 1. Left 2. 5v 3. Gnd 4. Right I just...
neo-geo.com
This guy uses a happ analogue pot adjuster
Retroman839
Senior Member
I couldn’t get the repro pcb
To work correctly.
Tested my analogue stick without pcb
Works fine with monkey ball but not quick/ velocity enough.
With the repro sega analogue pcb
I was always missing correct forwards and back wards ( push & pull in the joystick adjustment ) in game options.
And then left was stuttering ..
I had to admit defeat at 1:30 last night!
Will try again tonight but I’m fearing my analog pcb pot amp is faulty ..
🤨
To work correctly.
Tested my analogue stick without pcb
Works fine with monkey ball but not quick/ velocity enough.
With the repro sega analogue pcb
I was always missing correct forwards and back wards ( push & pull in the joystick adjustment ) in game options.
And then left was stuttering ..
I had to admit defeat at 1:30 last night!
Will try again tonight but I’m fearing my analog pcb pot amp is faulty ..
🤨
Does your stick reach the full range when calibrating? If so then I don't understand how quick you want it to be.
The output values of the official banana stick are different. In your link to NG.com Codecrank said his didn't work at all without an amplifier. If yours is working without then maybe that's just how it is - you use the range for a gradually increasing lean, and the full extent for a full tilt.
Last edited:
Retroman839
Senior Member
Nah ..
I have monkey ball on all platforms
Game cube
Ps2
Ninty DS. Touch & roll
Dreamcast
The difference between slow & correct speed is apparent
Retroman839
Senior Member
00- ffH. ?
I will check that later
But either way it’s right with amp
And to slow unplayable without amp
Retroman839
Senior Member
Fu***g thing started stuttering last night and no forward motion ..
I think pcb isn’t working correctly
I think pcb isn’t working correctly
Monstermug
Active member
So to summarise you need to change the pot on the Gundam or the resistors on the amp and also use the amp to get the exact movement of an original. Also the restrictor gate as well. Got it.
Well the cost of the original resistor is dumb
Gundam
Monkeyball
na.suzohapp.com
unless the pot isnt linear in which case you need a logarithmic 5k
Well the cost of the original resistor is dumb
Gundam
Monkeyball
5k Potentiometer Sega 220-5373 / 220-5374 / 220-5484 - 220-5373
5k Potentiometer Sega 220-5373 / 220-5374 / 220-5484
na.suzohapp.com

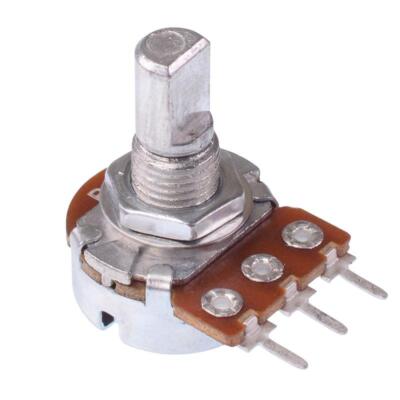

5K 16mm Linear Splined Potentiometer D Shaft Pot | eBay
15mm shaft length. 20% tolerance. Panel cut-out: 7mm.
www.ebay.co.uk
unless the pot isnt linear in which case you need a logarithmic 5k
Retroman839
Senior Member
🥹 I think I will get a new stick
I’m using a Naomi zombie revenge style
Stick
I’m using a Naomi zombie revenge style
Stick
Monstermug
Active member
Ive got a spare gundam stick if u need?
